LCD Drawer & KVM Benefits:
- High density Cat5 KVM with either 16 or 32 ports in 2U
- Cost efficient DB-15KVM integration
- Single or “One Man” installation slide for easy, quick installation
- 104 key notepad keyboard with full numerical pad
- Mix PS/2, USB & SUN Multi-Platform switch capability
- Secure remote User access across the world wide web
|
 |
|
| |

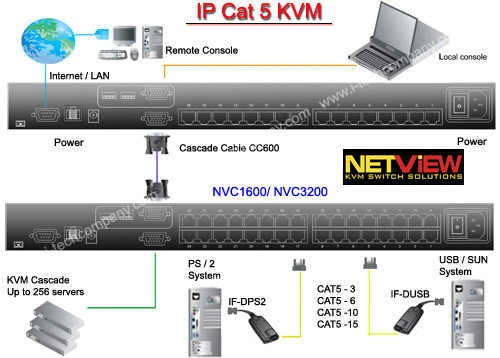

IP CAT5 KVM Diagram:
 |
|
Top
LCD Features
- 2U rackmount drawer with 20 " SAMSUNG LCD
- Either PS/2 or USB input to the LCD Drawer by cable selection
- Multiple keyboard language selections with either touchpad or trackball
- slide rails with fixed positions to prevent drawer movement when typing
- Multi lingual on screen display meun
- 12, 24 and 48 volt DC power options
KVM Feature:
- Use of the RJ45 Cat5 interface allows for a higher number of ports in smaller density
- Greater distances between your switch and servers allow enhanced data centre rack layouts
- Traditional Cat5 cords, when compared to coaxial cables, provide simple cable management
- Mix legacy PS/2 servers with newer USB and SUN solutions
- Multi lingual on screen display menu
- Advanced user profiles and configurable OSD hot key combinations
Top
Accessories
| IF-DPS2 |
IF-DUSB |
CC600 |
CAT5-3
CAT5-6
CAT5-10
CAT5-15 |
 |
 |
 |
 |
| USB dongle |
PS/2 dongle |
6ft cascade cable |
Cat5 cable
3ft, 6ft, 10ft & 15ft |
High Density IP Cat5 KVM
Expanding its range of server management solutions NetView introduces its new high density IP console 16 and 32 port Cat5 KVM switches. Designed to provide added benefits to its users the new switch range offers increased density, increased distances, enhanced cable management and multiplatform capabilities over traditional KVM switch platforms. Using either a PS/2 or USB dongle at the server end of the installation allows a user to cost effectively specify the switch to match the exact server configurations - multiplatform switches allow older or redundant servers to be migrated to servers with newer USB interfaces without replacing switch hardware.
Secure Remote IP Access
A second user can work securely via a remote Keyboard, monitor and mouse across the World Wide Web using 128 bit secure IP access. This plug and play technology requires no software to be installed on the servers or remote PC's but provides seamless secure access over IP via a web browser. Secure IP access allows the ultimate server control even to BIOS level of your infrastructure.
Enhanced User Interface
The user interface or OSD menu also offers many enhanced features for switch administration and user management, as an example the OSD allows Super Users to create custom user profiles / access rights for specific KVM ports. The OSD hotkey can also be configured using different key combinations and the multilingual interface allows users to select English, French, German, Spanish, Italian, Russian, Japanese and Simplified Chinese.
 |
 |
| Remote access via browser |
IP access up to BIOS level |
|
LCD Specification
| LCD |
| Panel |
Samsung Grade A LCD Panel |
| Display Size |
20" inch diagonal |
| Display Area |
304.1(H) x 228.1(V) mm |
| Resolution |
1,600 x 1,200 with 60 Hz |
| Display color |
16.7 M |
| Brightness |
300 nits |
| Contrast Ratio |
800:1 |
| Response Time |
TR=1/ Tf=4 ms |
| Pixel Pitch |
0.255 (H) x 0.255 (V) mm |
| Viewing Angle |
160/ 160 (H/ V) |
| OSD Control |
Brightness, Contrast, Phase & Clock, Color, H & V Position, Auto-tune, Recall & Language |
| Signal Input |
VGA, Analog RGB |
| Option Video Input |
S-video & Composite |
| LCD MTBF |
50,000 hrs |
| Touch Screen Option |
|
| Type |
5-Wire Resistive |
Surface Accoustic Wave |
| Thickness |
2.2mm |
3mm |
| Light transmission |
87% |
90% |
| Controller |
Serial / USB |
Serial / USB |
| Durability |
35 million |
50 million |
| OS Support |
Windows XP, 2000, NT, 98, DOS and Linux
|
| Power |
|
- 110 or 220 VAC at 50 or 60 Hz via AC adapter (12V, 6A)
- Option DC power with 12V, 24V or 48V DC input
|
| Environmental |
|
| Temperature |
0 to 50 Degree Celsius (Operation)
-25 to 60 Degree Celsius (Storage) |
| Relative Humidity |
90%, non condensing |
| Shock |
50G peak acceleration
(11ms, half since wave) |
| Vibration |
58~500Hz/ 0.98G
(11min/ cycle) |
| |
KVM Technical Specification
| |
| KVM Port |
| Number of ports : |
16or32 |
| Connector: |
RJ-45 |
| Connectivity: |
USB type or PS/2 type dongle, up to 40 meter ( 130 feet) |
| Local Console |
| Graphic connector: |
HDDB15-pin |
| Resolution: |
Up to 1600x1200 |
| Input device: |
2 x USB type A for keyboard & mouse |
| IP Remote Console |
| Connector: |
RJ45 ethernet |
| User management: |
15-user login, 1 x active user |
| Network protocol: |
DHCP / BOOTP / DNS |
| Security: |
SSL v3, RSA, AES, HTTP / HTTPs, CSR |
| Resolution: |
1600x1200 |
| Browser: |
IE, Firefox, Safari, Netscape |
| Others: |
Serial port, virtual media via USB |
| Expansion : |
| |
Up to 256 servers by 8-level cascade |
| Compatibility |
| Multi-platform |
Mix PCs, SUNs, IBMs, HPs, DELLs Server |
| :Support: |
Windows Vista, 2003 / XP / 2000, Linux, Netware, Unix |
| Power |
| Input: |
100-240VAC, 50 or 60Hz, IEC type cord |
| Option DC : |
12V/24V/48V DC input |
| Consumption : |
Max. 25 Watt |
| Regulatory Approval |
|
FCC,CE |
| Environmental |
| Operating : |
0 to 50"C |
| Storage: |
-10 to 60-C |
| Relative humidity: |
90%, non-condensing |
| Shock: |
50G peak acceleration (11 ms, half-sine wave) |
| Vibration : |
58~100Hz / 0.98G (11 min / cycle) |
|
|
|
|
| |
| |
| |
