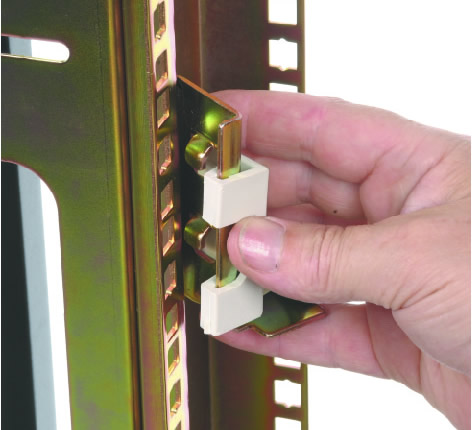

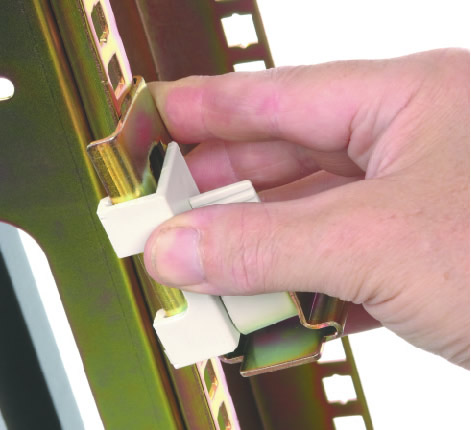

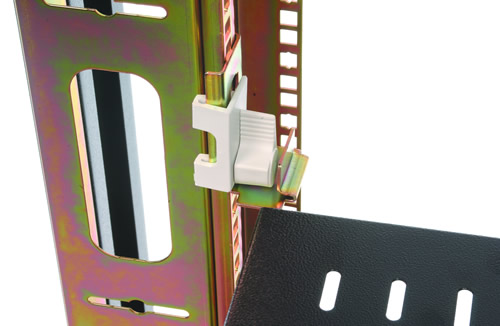

Position shelf support bracket	Lock-in shelf support bracket	Slide shelf into position and twist cam to lock

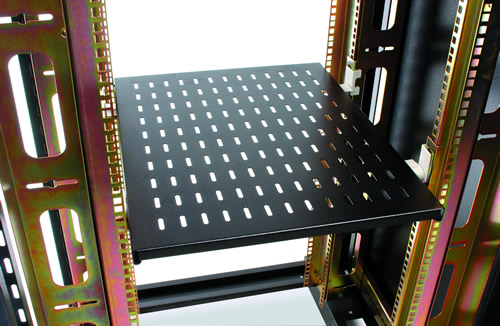

Universal Quick Fit Fixed Shelf

The universal quick fit fixed shelves are designed to provide maximum versatility and can be installed or relocated within the cabinet quickly without the use of tools. Shelves are fully ventilated and designed to install on front and rear 19" or 23" EIA square hole mounting rails. Load capacity 75 lbs. (34.0kg)

Default size is 19"W x 17 1/2"D. Click "OPTIONS" tab to select optional color and size.

Part Number	EIA Mtg. Width inch	Rail Spacing Front to Rear Min. - Max.		Shelf Depth		Color Options
		inch	mm	inch	mm
QRSV45	19	11 11/16 - 17 11/16	297 - 449	17 1/2	450	Black(B)/Grey(A)
QRSV65	19	17 11/16 - 25 9/16	449 - 649	25 1/2	650	Black(B)/Grey(A)
QRSV75	19	25 9/16 - 29 1/2	649 - 749	29 1/2	750	Black(B)/Grey(A)
QRSV2345	23	11 11/16 - 17 11/16	297 - 449	17 1/2	450	Black(B)/Grey(A)
QRSV2365	23	17 11/16 - 25 9/16	449 - 649	25 1/2	650	Black(B)/Grey(A)
QRSV2375	23	25 9/16 - 29 1/2	649 - 749	29 1/2	750	Black(B)/Grey(A)
