42U Server Rack Cabinet Open Frame Enclosures w/ 42" deep. (Model: UR6042A)

Product Discontinued. Call Us at 888-483-2418 for Replace items. • Ultra Rack SR6042A 42U 4 post Open Frame • 81.5" H x 23.5" W x 42.2"D (Overall Dimensions) • Meet the EIA standards for 19" Server Racks • Heavy duty framework holds 2500lbs • Guaranteed Compatibility w/Dell, HP-Compaq, SUN & IBM • Complete support for power strips and power distribution units



Click here for options

Product Info

Product Discontinued. Call Us at 888-483-2418 for Replace items.

UR 6042A 42U 4 posts Open Frame

Ultra Rack UR Series

		FEATURES
		42U 42" Deep Server Rack Enclosure w/Sides Black
		80"H x 24"W x 42"D
		Perforated Roof Top Features Eight 5.5" x 2" cutouts for cable entry
		Guaranteed Compatibility w/Dell, HP, SUN & IBM
		Heavy duty framework holds 2500lbs
		Unit Markings at front & Rear
		Includes Caster base and Leveling feet

Compatibility

Critical Advance Cooling

Efficient Cable Management

Safe Environment

Compatibility

Description

Universal Storage
The UR Series rack provides an ideal equipment enclosure, environment, designed around universal standards, for the compatible mounting of both OEM manufactured servers, from the leading vendors such as IBM, HP, Dell and Sun , as well as all 19" rack mountable solutions.

Manufacturer	Series
Apple^TM	Xserve^TM
DELL^TM	PowerEdge^TM
DELL^TM	PowerVault^TM
HP^TM	ProLiant^TM
IBM^TM	xSeries^TM
SUN^TM	Sun Fire ^TM
SUN^TM	Sun Fire Blade ^TM

SUN ^TM
Sun Fire ^TMServer
(V120 shown)

IBM ^TM
xSeries ^TM
(x305 shown)

DELL ^TM
PowerEdge ^TM
(2600 shown)

Critical Advance Cooling

Description

UR Series provides advance storage flexibility while ensuring that versatile cooling requirements are fully catered to meet these emerging thermal challenges.
UR Series achieves significant cooling efficiency through a number of outstanding design and engineering features. The expanded steel design of all enclosure doors give 80% perforated area that ensures the ultimate air pattern and flow

Photograph

		Fully Perforated Door
		Fan Top
		Perforated Top
	Fully Perforated Side Panel		Exhaust Door

Fully Perforated Front Door	Frame	Middle Split Door

Efficient Cable Management

Description

UR Series provides a simple, versatile cabling pathway within the rack frame. The heavy duty rack framework consisting of end frames, verticals, horizontal panel mounting brackets and reducing cable channels give multi-directional cable pathways and numerous efficient cabling options for easy passage of large quantities of cables.

Photographs

Multi Directional Cable Management System

Top

Vertical Cable Channel

Base

Top

Horizontal Mounting Support

Rear Vertical /w Built -in Cable Tray

Safe Environment

Safety

Safety is the Key Concern for enclosures and data center environments. The UR Series provides high and structural stability, provides high end structural stability, tested through sequential loading, ensure it provides a safe working environment. For ease of installation and transport the UR series has heavy duty rated castors and is static load rated to 1,000 kgs.

Restricting Access:

UR Series offers high secure solutions for access management. These include a key lockable front door, rear door, and side panels as well as top cover. These locks can be keyed identically or with different keys allowing you to manage security levels.

Photographs

Double Handle Lock	Safe Environment	Heavy Duty Hinge
	Heavy Duty Framework


Fully Perforated Middle Split Door		Rolls through a 7 foot doorway


Unit Markings		Hexagon Perforated Holes

Optional Accessories

1U Rackmount Fan Unit

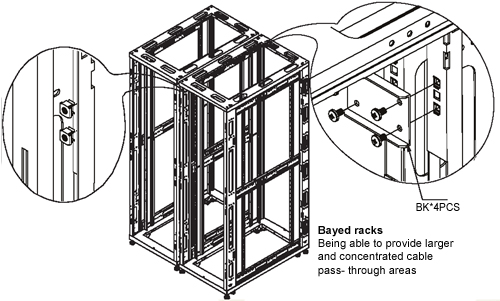

Baying Kit

Grounding Kit

Extension Plinth

Specification
Color	Black
Product Height	1975 mm
Product Width	603.25 mm
Product Length	901.7 mm
Internal Length	744.2 mm
Industry Standards	EIA RS310-C
Internal Rack Height	42U
U Height	42
Weight Capacity	2500 lb [1136 kg]
External height	77.75 inches
Internal width	19 inches
External width	23.75 inches
Internal depth	29.3 inches
External depth	35.5 inches
Shipping dimensions	84.5H x 26.5W x 38.5D inches
Shipping (Package) Weight	286.7 lb [129.73 kg]
Color	Flat Black
Key Lock	Yes
Package Contents	Black 42Ux42" Professional Server Cabinet Rack Bag of 50 cage nuts, 50 mounting screws "L" Shaped Mounting Rails Casters Levelers
Standards	EIA RS310-C
Max load capacity	1000 Kgs

Package Option

Photographs

Package Options

Standard Package - Full Set

Package A - Basic Frame : w/o doors and side panels

Package B - Basic Frame + Doors : w/o side panels

Package C - Basic Frame + Side Panel : w/o doors

Packing Form

Individual Packing, Kit of 3 Packing and Assembly Packing available.

Kit of three packing bundles with toughened paper pallet ensures excellent stability.

Ideal for overseas transportation

Better safety and protection can be provided

Model No.		Width		Depth				Height
				Overall		Effective		Overall		Effective
		mm	inch	mm	inch	mm	inch	mm	inch	mm	inch
UR-6942	42U	600	24''	975	38''	900	35''	2,020	80''	1,955	77''
UR-6042	42U	600	24''	1,075	42''	1,000	39''	2,020	80''	1,955	77''
UR-6947	47U	600	24''	975	38''	900	35''	2,242	88''	2,177	86''
UR-6047	47U	600	24''	1,075	42''	1,000	39''	2,242	88''	2,177	86''

options

Fixed Rackmount Shelves

None

1(+$65)

2(+$135)

3(+$195)

4(+$260)

Optional Top Fans Tray

None

4-Fan Top 600mm x 1000mm Rack 110V (TF-60.4A)(+$150)

6-Fan Top 600mm x 1000mm Rack 110V (TF-60.6A)(+$200)

Rackmount LCD Monitor

None

15 inch LCD Monitor (+$785.00)

15 inch LCD w/8-Port KVM (+$1199.00)

15 inch LCD w/16-Port KVM (+$1390.00)

17 inch LCD Monitor (+$999.00)

17 inch LCD w/8-Port KVM (+$1299.00)

17 inch LCD w/16-Port KVM (+$1599.00)

19 inch LCD Monitor (+$1399.00)

19 inch LCD w/8-Port KVM (+$1699.00)

19 inch LCD w/16-Port KVM (+$1899.00)

Shipping Method (Note: Actual Costs will be Confirmed later)

Ground 3-5 Business Days (+$339.00)

Ground(if you do not have a loading dock)(+$365.00)

Freight Costs are Estimates. Actual Costs will be Confirmed later

Shipping Services

None

Inside Delivery (Call us @ 1-888-483-2418 for price)
