Combined with the Avocent CPS serial over IP network appliance, the SPC power control device delivers advanced power management and security:
- The SPC power control device provides enhanced security options, including password protection, access rights and port groupings.
- The CPS serial over IP solution adds authentication and multiple levels of data encryption for advanced user security.
Features and Benefits
The DSView?3 management software interface lets you easily associate server names with actual power outlet ports on the SPC power control device. DSView 3 software also allows grouping of dual-server power supplies as well as separating the power supplies on different power sources. This gives you true redundancy and control of dual-powered servers.
Note: DSView 3 software is sold separately.
- Intelligent Power Management . Individual, addressable power outlets let you remotely reboot devices from any location in the data center or across the globe
- Integrated Power Management . Access to SPC power control device from DSView 3 software provides built-in support for servers with multiple power supplies and reduces the possibilities of inadvertently switching off the wrong server / target device
- Higher Amperage . The SPC 208V @ 30 Amp version doubles the power load delivered to the rack without increasing electrical infrastructure

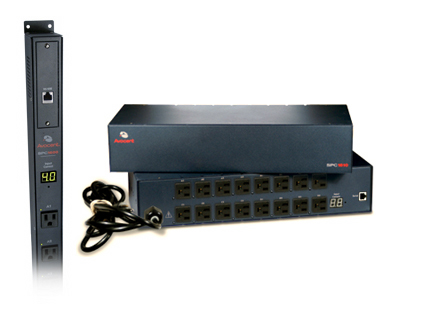

- Ease of Use . Available in horizontal and vertical mountable 16 outlet models. (Also available in 4 and 8-outlet models, with configurable port grouping and naming, multi-port commands and enhanced administration)
- On / Off Power Indicators . DSView 3 software lets you easily view the SPC devices power outlet on / off status without entering the server room / data center
- Power-up Sequencing . Avoids branch circuit overload due to inrush current on powering-up the SPC appliance
- Naming Associations . Users can create an association between a server name and specific SPC outlet port(s)
- Redundant Power Supply Configurations. Single connect and click power control of dual / multiple target devices that are powered from independent branch circuits / power sources
- Power Monitoring . Dynamically measures and reports total input current load and indicates on / off state for every port
- Security . In addition to port specific and command specific access control, the SPC power control device provides advanced user authentication and data encryption when combined with the Avocent CPS appliance
- Energy Efficient . Power-on sequencing eliminates inrush current overload, which lets you maximize the number of devices on a single circuit
- Click and Connect Access . When used with the Avocent DSView 3 software interface, the SPC device lets you access power to virtually any connected data center device
- Local and Remote Power Load Measurement. Lets you hot plug additional SPC power control devices without the risk of overloading the branch circuit
| Specifications |
| |
|
Vertical |
Horizontal 2U |
| Mechanical |
Height |
63.75 in (161.92 cm) |
3.5 in (8.89 cm) |
Width |
2.40 in. (6.09 cm) |
17 in (43.18 cm) |
| Depth |
1.75 in. (4.45 cm) |
8 in (20.32 cm) |
| Weight |
13.5 lbs. (6.12 kg) |
12 lbs (5.44 Kg) |
| Environmental |
Operating Temp |
5°F (-15°C) to 131°F (55°C) |
| Storage Temp |
40°F (-40°C) to 185°F (85°C) |
| Relative Humidity |
10% to 90% non condensing |
| Power |
Operating Voltage |
100-120V or 208-240V |
| Power Frequency |
50/60 Hz |
| Input Power |
20 & 30 Amp versions (maybe de-rated to 16 & 24 Amp depending upon local safety agencies) |
| Power Outlets |
NEMA 5-20R, 100-120V
IEC 60320/C13, 208-240V |
Supported
Hardware |
Computer |
N/A |
| Monitors |
N/A |
| Peripherals |
N/A |
| Standards |
Approved Agency |
US & Canada (cTUVus & FCC mark), European Union (CE), Germany (GS), Japan (VCCI) |
| Order Details |
Part Number |
| 8-port power control devices |
SPC800 |
| 16-port power control devices |
SP1600 |
| DSView 3 software - 1 User add-on license |
DSV3-1 |
| DSView 3 software - 5 User add-on license |
DSV3-5 |
| DSView 3 software - 1 Spoke Add-on License |
DSV3-SPOKE |
| DSView 3 Portfolio B - 1 Hub/1 Spoke/5 Users |
DSV3-SW |
| DSView 3 Portfolio A - 1 Hub/5 Users |
DSV3-SWA |
| DSView 3 software - Upgrade 1 Hub/5 Users (Existing DSView 2 customers upgrading to DSView 3) |
DSV3UG-SW |
|
